제품특징

- 폭넓은 용도를 고려한 컴팩트하고 가벼운 2 U 사이즈의 라인 업.
- 한층 더 진화한 고효율 앰프 구동 기술 「EEEngine」을 탑재.
- 파워풀하고 높은 명료도를 실현한 신뢰의 사운드.
- 신뢰성과 고음질을 지원하는 전원부.
- 다양한 장비의 입출력을 지원하는 단자.
- 입력 : XLR-3-32, 1/4"TRS phone, 출력 : SPEAKON, 5way binding post, 1/4" phone)
- LOW/HIGH CUT 필터를 탑재 해, 서브우퍼 시스템을 간편하게 구축 가능.
- YAMAHA SPEAKER PROCESSING을 탑재.

높은 효율성과 신뢰성을 이어오는 P 시리즈 앰프의 새로운 모델.
새롭게 업그레이드 된 EEEngine은 기존 앰프보다 50%가 향상된 효율을 제공하면서도 힘있고 명료한 사운드 파워를 유지합니다.

제품스팩

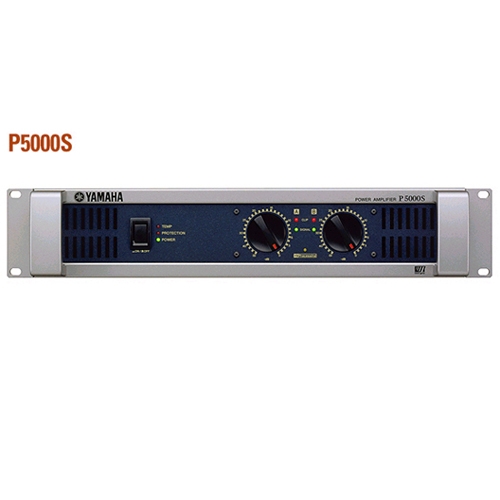

			P7000	P5000S	P3500S	P2500S
Output Power	1kHz	8	750W + 750W	525W + 525W	390W + 390W	275W + 275W
	THD + N=1%	/STEREO
		4	1100W + 1100W	750W + 750W	590W + 590W	390W + 390W
		/STEREO
		8	2000W	1500W	1180W	780W
		/BRIDGE
	20Hz-20kHz	8	700W + 700W	500W + 500W	350W + 350W	250W + 250W
	THD + N=0.1%	/STEREO	650W+650W (230V)*
		4	950W + 950W	700W + 700W	450W + 450W	310W + 310W
		/STEREO
		8	1900W	1400W	900W	620W
		/BRIDGE
	1kHz, 20ms, nonclip	2	1600W + 1600W	1300W + 1300W	1000W + 1000W	650W + 650W
		/STEREO
		4	3200W	2600W	2000W	1300W
		/STEREO
Power Bandwidth	half power		10Hz-40kHz (THD+N=0.5%)
THD + N	20Hz-20kHz, half power		0.10%
Intermodulation Distortion	60Hz:7kHz, 4:1,		0.10%
	half power
Frequency Response	Po=1W, RL=8		0db, +0.5dB, -1dB f=20Hz-50kHz
Channel Separation	half power RL=8		70dB 1kHz
	Att. max input 600
	shunt
Residual noise Att. min	DIN AUDIO		-70dB
S/N ratio	DIN AUDIO		104dB	103dB	102dB	100dB
Damping Factor	RL=8	1kHz	350dB		200dB
Sensitivity @8	Att. max		+8dB	+6dB	+4dB	+3dB
Voltage Gain	Att. max.		32.1dB
Input Impedance			30k
			(balance), 15k
			(unbalance)
Controls	Front panel		POWER switch (push on/Push off)
			attenuator (31 position) x 2
	Rear panel		MODE switch (STEREO/BRIDGE/PARALLEL)
			FILTER switch (SUB WOOFER/LOW CUT/OFF) x 2
			FREQ.CONTROL (25Hz-150Hz) x 2
			YAMAHA SPEAKER PROCESSING switch
			(ON/OFF )
Connectors	Input		XLR-3-31 type/ch
			1/4" TRS/ch
	Output		SPEAKON, 5way binding post, 1/4" phone/ch
Indicators	POWER		x 1 (Green)
	PROTECTION		x 1 (Red)
	TEMP		x 1 (Red) heatsink temp
			85°C
	YS PROCESSING		x 1 (Yellow)
	SIGNAL		x 1 (Green)
	CLIP		x 1 (Red)
Load Protection			POWER switch on/off mute
			DC-fault power supply shutdown (P7000S/5000S)
			DC-fault power output cut (P3500S/2500S)
Amplifier Protection			Thermal (heatsink temp 90°C VI limitter (RL 1 )
Limitter Circuit			comp. :THD
			0.50%
Cooling			Dual variable-speed fan Single variable-speed fan
Power Requirements	US and Canadian models		120V, 60Hz
	Europe model		230V, 50/60Hz
	Australia model		240V, 50/60Hz
Idle Power Consumption			35W	35W	30W	25W
1/8 Power Consumption (4)			700W	550W	450W	320W
Maximum Power Consumption (4)			4000W	43000W	2000W	1600W
Dimensions (W x H x D)			480 x 88 x 456 mm (18-7/8" x 3-7/16" x 17-15/16")
WEIGHT			12 kg	12 kg	15 kg	14 kg
			(26.5 lbs.)	(26.5 lbs.)	(33.1 lbs.)	(30.91 lbs.)
