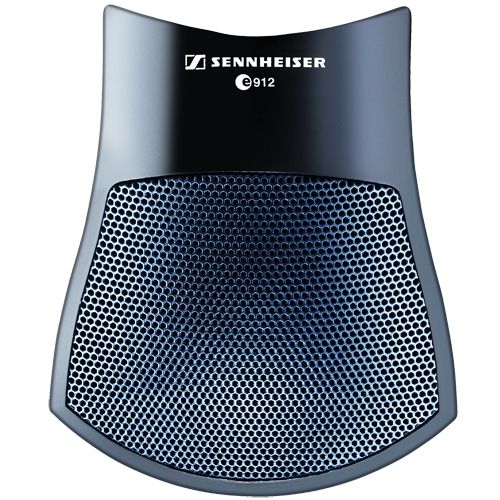

The e 912 is a pre-polarised condenser boundary microphone with half-cardioid pick-up pattern.
Its acoustic properties have been optimized for instruments, vocals and speech.


The e 912 is an ideal choice for pianos, theatre and opera productions, conference applications, altars and lecterns.
To optimally match the installation environment, the e 912 is available in black or creme white.

Features
Frequency response and sensitivity optimized for picking up instruments, vocals and speech
Unobtrusive, flat housing
Extremely rugged and step-resistant
Shock-absorbing rubber base
Mounting slots for table installation
Gold-plated XLR connector
Integrated pre-amp
Delivery Includes
e 912 Microphone
Pouch
User manual

Technical Data
Transducer principle (Microphone) pre-polarised condenser
Pick-up pattern half-cardioid
Frequency response (microphone) 20 Hz - 20 kHz
Sensitivity in free field, no load (1kHz) 10 mV/Pa
Max. Sound pressure level (aktiv) 135,6 dB
Equivalent noise level 26 dB(A)
Equivalent noise level weighted as per CCIR 468-3 37 dB
Phantom powering 48 V
Power supply 1,1 mA
Connector XLR-3
Nominal impedance < 100 Ohm
Min. terminating impedance 1 kOhm
Weight ca. 550 g
Dimensions 126,5 x 105 x 26,5 mm
